EC-201W (Heavy Payload Palletizing)

The EC-201W is a Heavy Payload Robotic Palletizer & one of the most technologically advanced Robotic Palletizer in the market today. With three EC-201W models to choose from. Fuji Robotics offers a solution for High Speed Robotic Palletizer(HS) , Heavy Weight Robotic Palletizer(HD) and/or Super Heavy Weight Robotic Palletizer(W) applications.


Fuji ACE Model EC-201W
Type of Motion Multi-Articulated
Action Mode Cylindrical
Load Capacity(Including End Effector) 320kg(700lbs)
Palletizing Capacity (cycles / hour) 600
Degree of freedom 4 axis

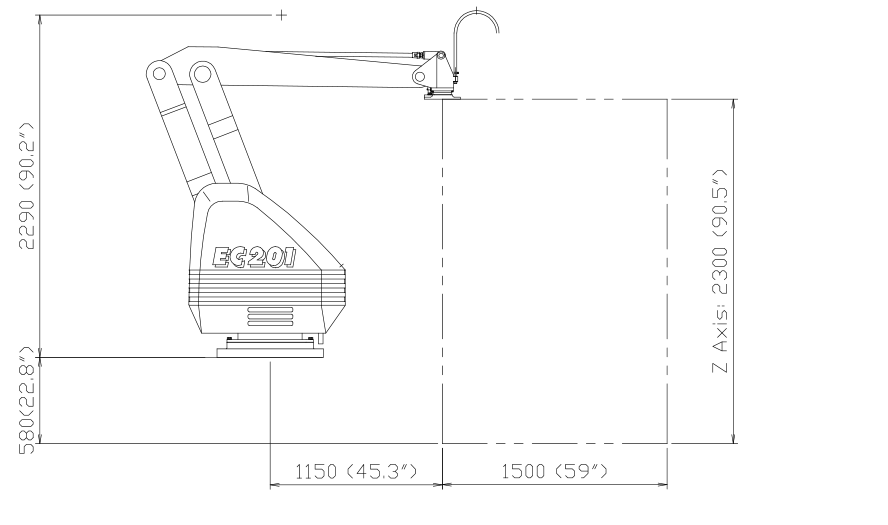

Operating Area Z axis (vertical) 2300mm(90.5")

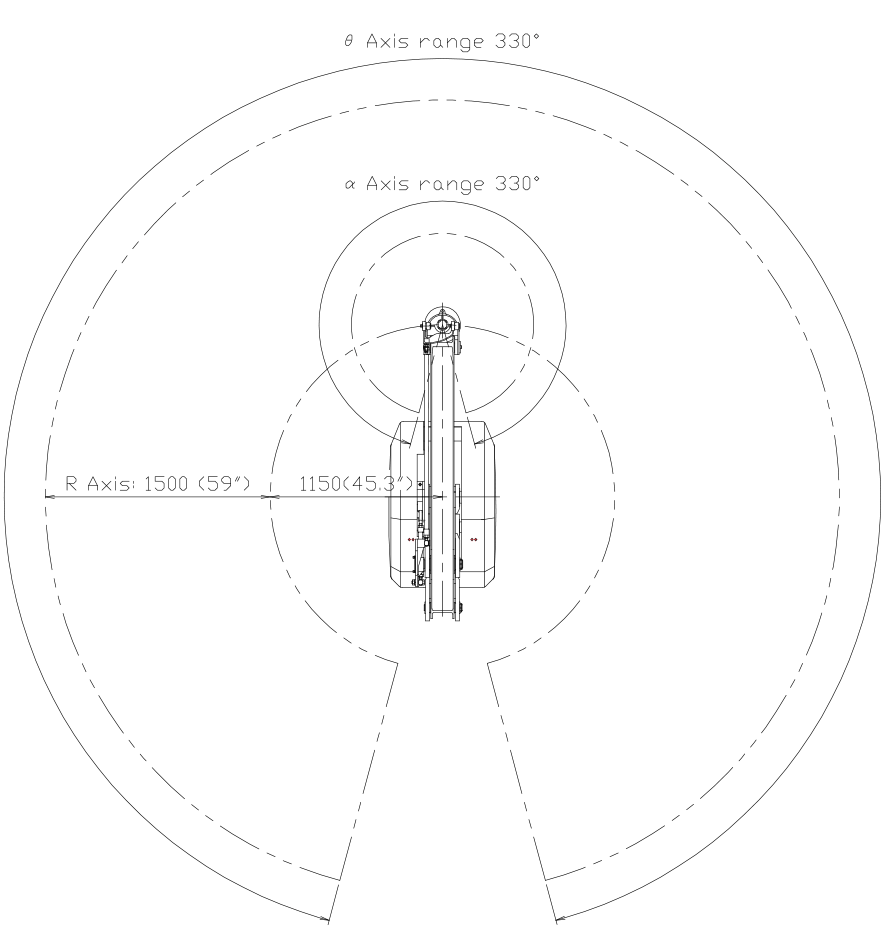

R axis(longitudinal) 1500mm(59")
Theta axis (rotation) 330°
Alpha axis (Wrist) 330°
Repeatability ±0.1mm
Memory 120-400 Programming locations available
Teaching method Teaching playback / Teaching Support
Power Requirements (200/220v,3Phase,50/60 HZ)
Power Consumption (Without Peripheral Equipment Load) 7KVA / 18.4amps
Robot Weight(Without End Effector) 1150kg (2536lbs)
Pneumatic Consumption (*Using Standard fuji Case or Bag End Effector) *5.7SCFM @ 70psi(0.5MPa)
Note: Capacity rates can be significantly affected by layouts. product types,and can be confirmed after a detailed analysis of an application.
